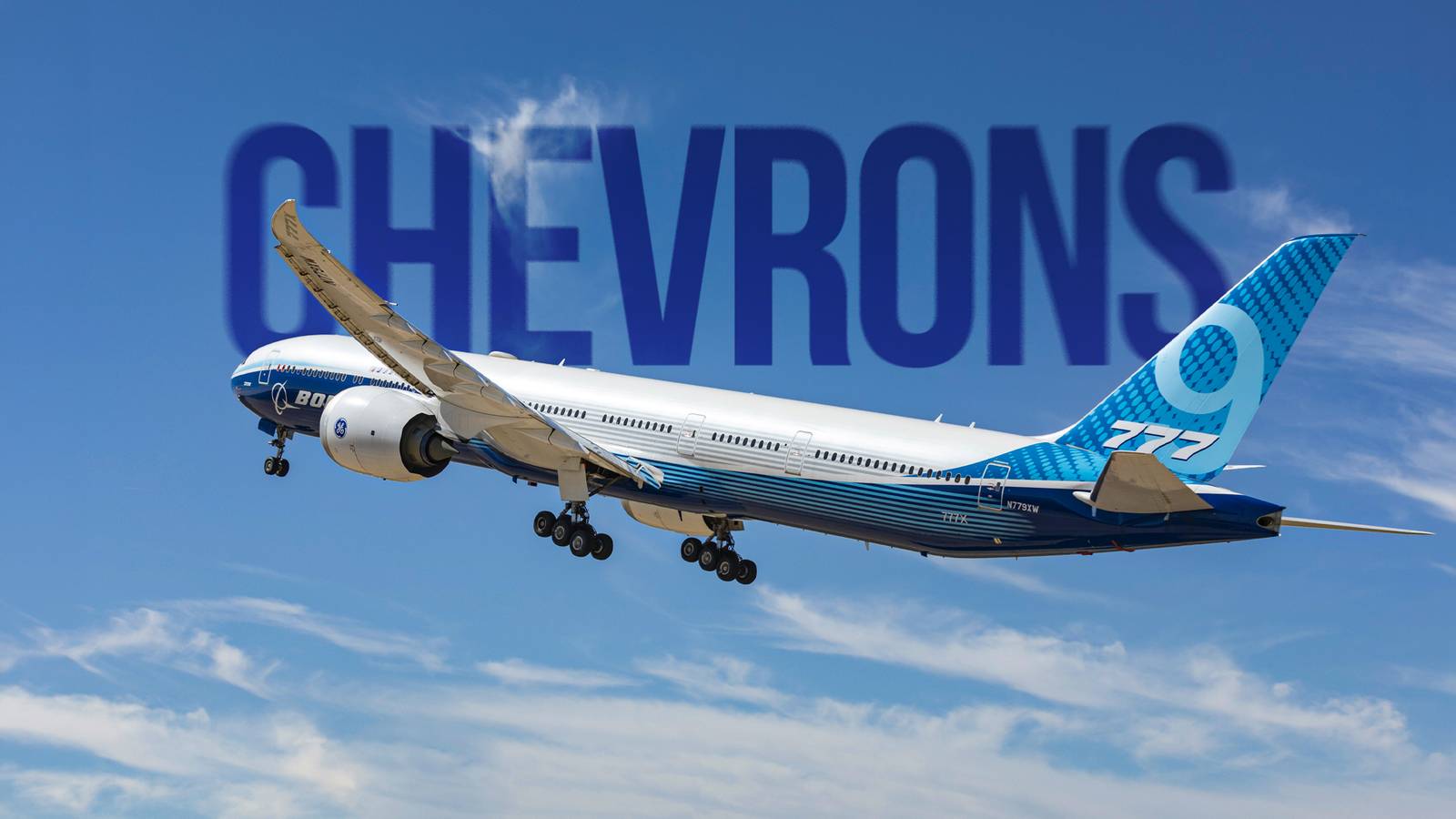

After Boeing released the initial 2013 concept renderings for the Boeing 777X, aviation enthusiasts immediately noticed a series of sawtooth chevrons along the trailing edge of the nacelle on the massive GE9X engines, a rather familiar design element. These distinct serrated edges had become an iconic visual signature of modern widebody aircraft like the Boeing 787 and Boeing 747-8, symbolizing cutting-edge noise reduction technology. By the time Boeing finalized the 777X configuration and rolled out physical flight-test aircraft, the chevrons had quietly vanished, replaced by smooth, continuous nacelles and clean exhaust nozzles.
This design change was not a compromise on noise compliance or environmental standards, but rather a demonstration of how rapidly propulsion aerodynamics advanced over a single decade. Chevrons were used for an essential acoustic purpose during the mid-2000s, and since then, aerospace engineers have developed more efficient methods to eliminate noise at the fluid source rather than relying on external mechanical mixing.
Jet mixing noise occurs when high-velocity, superheated exhaust gases exiting the core of a jet engine collide with shear force against cooler, slower-moving ambient air. On older generations of commercial turbofans, this violent shear layer created turbulent aerodynamic eddies that radiated intense, low-frequency sound waves during takeoff and landing climb-out. Low-frequency acoustic energy travels farther and penetrates ground structures more effectively than high-frequency noise, so managing exhaust turbulence became a top priority for airframe manufacturers facing strict airport noise regulations. ICAO also helped the industry to stay on top of the noise through Annex 16, which outlines provisions for noise reduction.
Engineers created sawtooth chevrons on the trailing edge of the nacelle and core nozzle to smooth out this aggressive mixing boundary. The high-speed exhaust and surrounding airflow intermingle across triangular geometric teeth, meaning the chevrons generate small, controlled vortices rather than large, chaotic turbulence eddies. These smaller vortices dissipate energy rapidly, successfully trimming low-frequency jet mixing noise by five to six decibels and significantly softening the acoustic footprint heard on the ground below flight paths.
Despite their acoustic effectiveness on aircraft like the 787, chevrons come with an inherent aerodynamic tax that propulsion engineers have always sought to eliminate. Inducing deliberate vortices along the trailing cowl bleeds kinetic energy directly from the exhaust stream, creating parasitic drag and reducing overall thrust efficiency. An aerodynamic penalty like this translates to an estimated 0.5% increase in overall fuel burn, while also adding structural weight, manufacturing complexity, and extra maintenance points to the nacelle assembly.
The main factor enabling engineers to discard chevrons on the 777X is the real scale and thermodynamic inner workings of the General Electric GE9X engine. Featuring a massive fan diameter measuring 134 inches (3.4 meters), the GE9X achieves an ultra-high bypass ratio of approximately 10:1. In an engine of this scale, ten volumes of cool air bypass the combustion core for every single volume of air entering the hot section, moving an unprecedented mass of air at significantly lower overall velocities.
Lowering exhaust velocity strikes directly at the root cause of jet mixing noise, rendering external serrated cowls redundant. Jet noise scales exponentially with exhaust velocity, based on NASA research, so reducing the speed differential between the core exhaust and the surrounding atmosphere slashes low-frequency acoustic output at the fluid dynamic source. As a result, the acoustic problem that chevrons were originally invented to fix on earlier, higher-velocity engines largely disappears within the high-volume airflow profile of the GE9X.
With exhaust mixing noise minimized by ultra-high bypass aerodynamics, the key acoustic challenge shifted to the front of the engine, where massive fan blades create high-frequency intake noise. GE Aerospace solved this by redesigning the front fan geometry, reducing the blade count from 22 on the older GE90-115B down to 16 carbon-fiber composite wide-chord blades on the GE9X. Sweeping the composite blades back allowed aerodynamicists to suppress intake turbulence and cabin buzzsaw noise while leaving the exterior trailing cowl completely smooth and drag-free.
Engine chevrons have become a defining feature of modern aircraft, but do they really pose a problem for performance?
Complementing the low-velocity airflow of the GE9X is a sophisticated network of internal acoustic treatments engineered by Safran. Rather than disturbing the exterior boundary layer with protruding sawtooth teeth, modern nacelles absorb acoustic waves internally before sound waves exit the cowl. The exhaust housing incorporates titanium nozzle components combined with lightweight composite skins lined with micro-perforated honeycomb structures, trapping and dissipating acoustic energy across the engine bypass duct.
Material science advancements played an equally vital role in eliminating the need for external chevrons on the 777X powerplant. The GE9X incorporates heat-resistant ceramic matrix composites (CMCs) within the inner turbine housing, allowing the engine core to operate at higher internal temperatures and tighter mechanical tolerances. These tight clearances reduce internal aerodynamic flutter and acoustic resonance, helping maintain stable airflow through the turbine stages without generating secondary acoustic harmonics.
Combining an ultra-high bypass ratio with micro-perforated acoustic liners allows the Boeing 777X to satisfy stringent noise certification requirements. What this means is that the world’s largest twin-engine widebody can operate quietly at noise-sensitive international hubs without incurring restrictive night-curfew penalties or elevated landing fees.
Ditching engine chevrons ultimately came down to that persistent penalty of aerodynamic drag. In an industry where international widebody aircraft operate 12 to 16 hours per day, even microscopic efficiency losses compound into massive operational expenses over a multi-decade airframe lifespan. While just 0.5% of a thrust penalty may sound negligible on paper, multiplying that fuel burn penalty across a global fleet of twin-engine widebodies flying thousands of long-haul sectors per year creates an unbearable fuel bill for airline customers.
Aerospace engineers at Boeing and General Electric recognized that preserving fuel efficiency was paramount to the commercial success of the flagship 777X program. Through refining internal acoustic ducting and using the ultra-high bypass airflow, the engineering team eliminated the need for external trailing-edge serrations entirely. Addressing the design pivot directly, Terry Beezhold, chief project engineer for the 777X, confirmed that the replacement design “provides equivalent levels of noise for the cabin and community, but is lighter in weight and has lower drag”. The design breakthrough allowed Boeing to meet mandatory airport acoustic thresholds without forcing airlines to burn extra jet fuel simply to overcome nacelle-induced drag.
Removing chevrons also delivered significant long-term maintenance, repair, and overhaul (MRO) savings for prospective airline operators. Sawtooth chevrons protrude directly into the superheated, high-vibration exhaust stream at the rear of the nacelle, so the serrated tips endure intense thermal cycling and acoustic fatigue. Over thousands of flight hours, these sharp metal and composite edges are notoriously vulnerable to micro-cracking, composite delamination, and edge erosion. Transitioning to a smooth, continuous trailing edge takes away these structural weak points, simplifying daily pre-flight line inspections and reducing composite repair labor over three decades of service.
Designed to reduce noise, nacelle chevrons ultimately proved to be more bad than good.
One issue that is often overlooked with chevron-style engines is the potential for severe ground clearance hazards when taxiing. There is an inherent risk of these hazards with massive engines, especially for the world’s largest commercial aircraft engine. The outer cowl of the GE9X measures a massive 184 inches (4.7 meters) in diameter, making the physical engine wider than the passenger cabin of a Boeing 737. Mounting powerplants of this immense scale instantly leads engineers to look closely at the precise management of physical ground margins during high-roll-angle landings, engine-out taxi maneuvers, and severe crosswind touchdowns.
Traditional serrated chevrons complicate ground clearance dynamics because they rely on inward penetration angles of approximately three to five degrees to force core exhaust and bypass air to intermingle. This inward geometry expands the turbulent exhaust wake envelope surrounding the trailing edge of the cowl, increasing the clearance needed behind the engine. On a massive nacelle like the GE9X, expanding the trailing wake envelope would reduce valuable ground clearance margins when the airframe experiences wing flex or gear compression during firm landings.
Adopting a smooth, flush trailing nozzle profile keeps the exhaust wake tight and aerodynamic, maximizing clearance between the lower cowl and the tarmac. Combining a smooth nacelle with a slightly flattened lower cowl profile allows Boeing to maintain safe engine-to-ground margins without lengthening the main landing gear legs. Overall, it means the 777X achieves optimal ground clearance while preserving structural weight limits across the landing gear assembly.
The disappearance of engine chevrons on the 777X marks the end of a distinct visual era in commercial aviation design. Throughout the mid-2000s, sawtooth chevrons were the pinnacle of noise suppression technology, adorning revolutionary aircraft like the 787 and the 747-8. During that developmental era, chevrons were a necessary bridge technology, allowing high-bypass engines to meet strict urban airport noise limits before computational fluid dynamics and internal acoustic materials matured.
Today, widebody engine manufacturing across both Boeing and Airbus has permanently moved away from visible trailing-edge serrations. Modern widebodies like the Airbus A350, Airbus A330-900, and Boeing 777X all feature clean, smooth nacelles backed by internal micro-perforated sound absorption. Computational fluid dynamics (CFD) modeling now allows propulsion aerodynamicists to map internal duct acoustics with pinpoint accuracy, trapping acoustic energy inside the engine bypass housing rather than relying on external drag-inducing mechanical teeth.
Even with the aviation industry’s push toward next-generation propulsion concepts, including open-rotor architectures and ultra-high-bypass geared turbofans, the lesson learned from the chevron pivot remains clear. True engineering progress favors solving aerodynamic problems at the fluid source rather than applying drag-producing exterior fixes. Boeing and General Electric have shown that long-haul airliners can operate whisper-quiet at urban airports while delivering maximum fuel efficiency across the globe.
